Location and lock status together
An integrated 4G/GPS design supports lock-state detection and abnormal-status alarms, retaining location and status information for transit review.

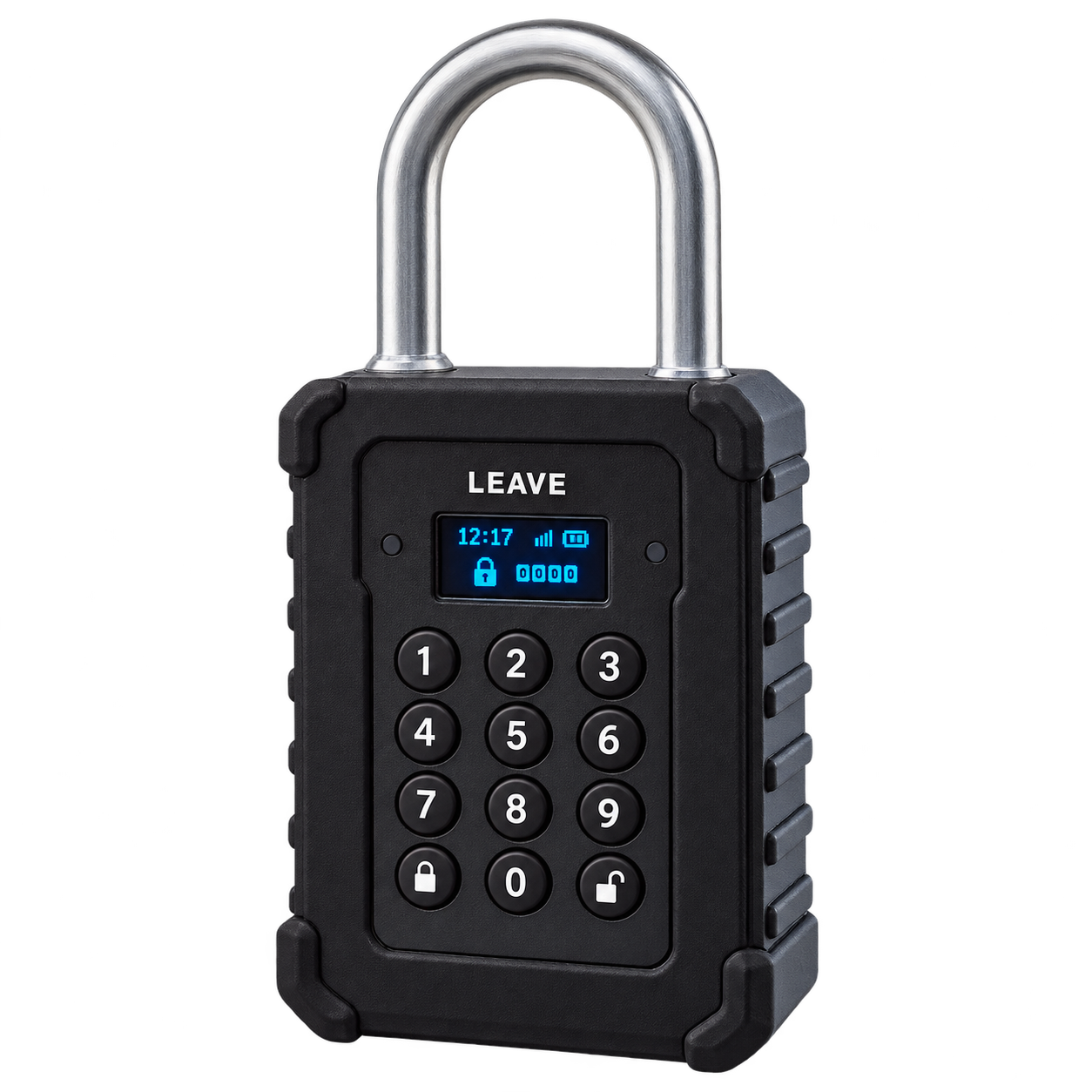

LEAVE LV-L01
4G GPS electronic padlock
Reusable electronic sealing for containers and cargo transport. Link GPS location, lock status and operation records, with remote platform control, a Bluetooth app and keypad passwords.
GPSLocation & lock state
4G Cat.1Cellular connectivity
IP67Protection rating
Three ways to operate in the field
Operate through the platform network, Bluetooth app or keypad password. An OLED display and numeric keypad support status checks and authorized operations.
Records from sealing to handover
Reuse the lock and link its unique device identity to waybills, dispatch, transit exceptions and arrival inspections.
Technical specifications
| Dimensions | 111 × 82 × 42 mm |
|---|---|
| Shackle | 304 stainless steel, 9 mm diameter |
| Weight | 800 g |
| Battery | 10 Ah rechargeable lithium battery |
| Connectivity | 2G / 4G Cat.1 / LoRa (470 MHz) |
| Continuous runtime | About 7–8 days, reporting every 60 seconds |
| Protection rating | IP67 |
| Operating temperature | −20°C ~ +60°C |
| Relative humidity | ≤90% |
| Operating methods | Platform network / Bluetooth app / keypad password |
| Charging | 5 V DC; about 6–8 hours to full charge |
Where it fits
Container transport, cargo transfers and warehouse handovers. Use sealing, location and operation records to review changing conditions in transit.
Specifications follow the supplied user manual. The stated runtime uses a 60-second reporting interval; network, temperature and operating frequency affect actual results. Confirm regional cellular bands and LoRa 470 MHz suitability. Platform controls and alerts require protocol and permission configuration. The product image is a LEAVE-branded rendering based on the manual photograph.
